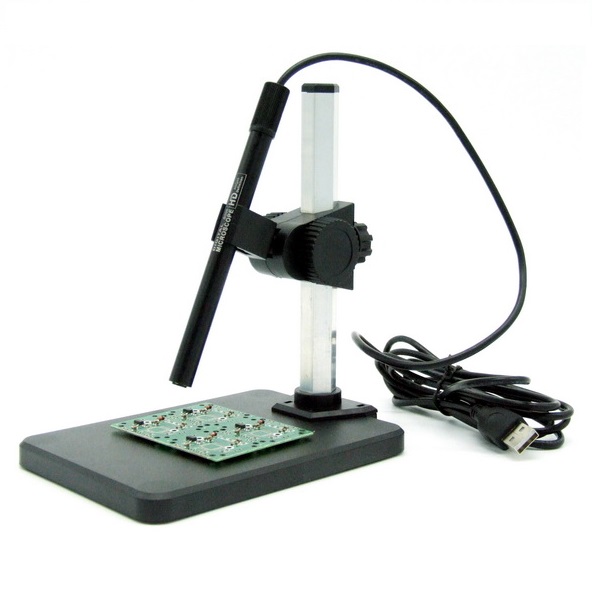

USBPEN-LX1000M200 Pen type USB Microscope

Image CMOS Sensor

Controller High Speed DSP (Driver Free available)

Focus Range 0mm ~ 40mm

Snap Shot Software and Hardware

Video Capture Resolution 2.0M.

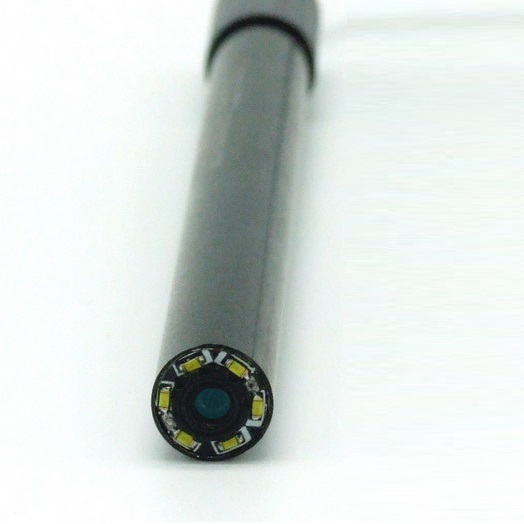

Built-in 8 White-light LED and adjustable illumination ensure the

magnified images are clear and bright

Still Image Capture Resolution 640*480

Frame Rate 30 f/s under 600 LUX Brightness

Digital Zoom 5X Sequence Mode

Brightness Control Manual adjustment

Magnification Range 1X ~ 300X (Manually)500X、600X、800X、1000X

Power SupplyUSBPort ( 5V DC )

USB 2.0 & USB 1.1 Compatible

Operation System Windows XPVistaWin 7 32 bit and 64 bit.

Language: EnglishChinese and other language by selection

System Requirement: Pentium Computer with 700M Hz & above

20M HD Space CD ROM Driver64MB RAMDirect X VGA Card

CD disk Driver and Micro-Measurement Tool

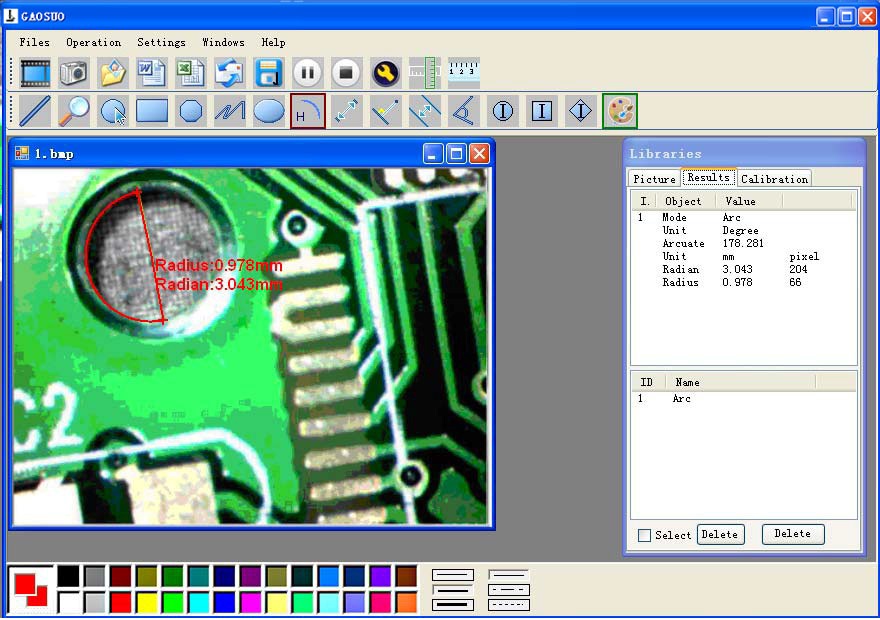

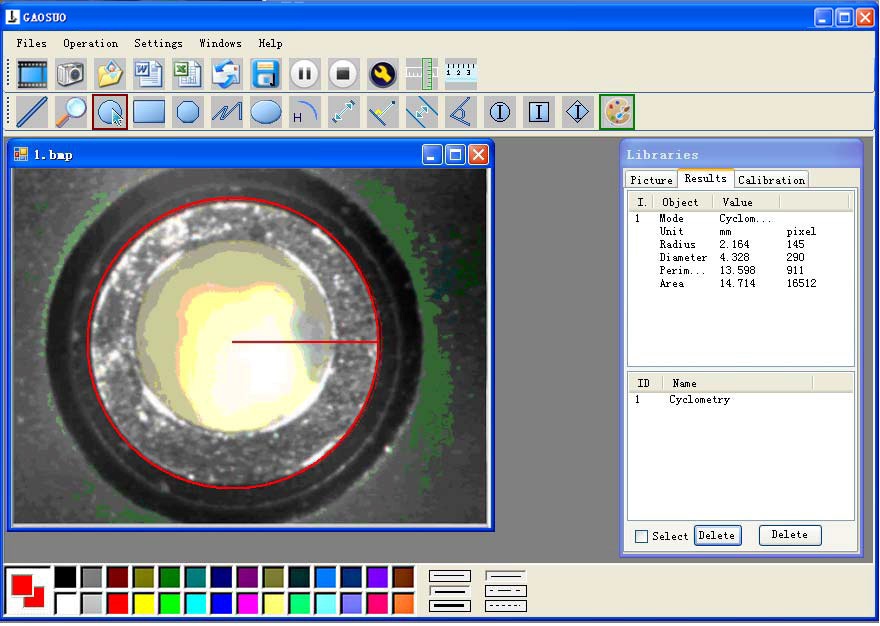

Measurment function of Software
