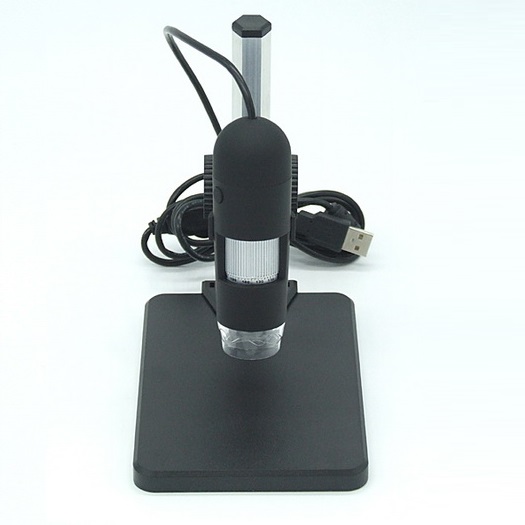

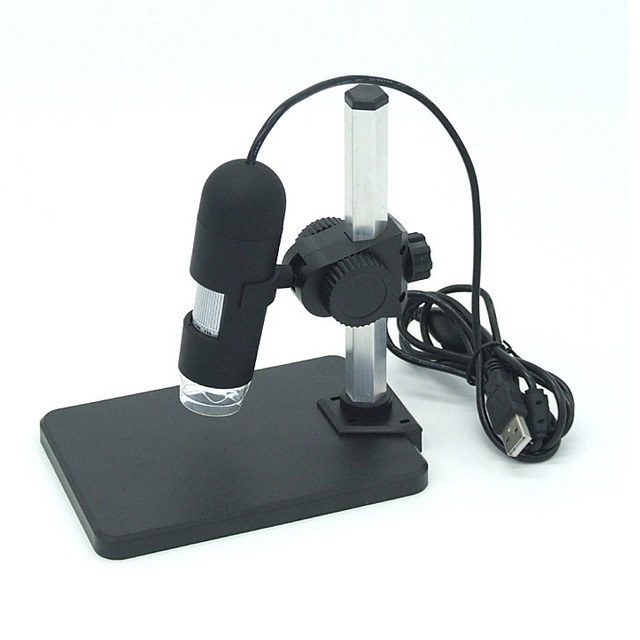

USB-LX200M200 USB Microscope

Image CMOS Sensor

Controller High Speed DSP (Driver Free available)

Focus Range 0mm ~ 40mm

Snap Shot Software and Hardware

Video Capture Resolution 2.0M.

Built-in 8 White-light LED and adjustable illumination ensure the

magnified images are clear and bright

Still Image Capture Resolution 640*480

Frame Rate 30 f/s under 600 LUX Brightness

Digital Zoom 5X Sequence Mode

Brightness Control Manual adjustment

Magnification Range 1X ~ 200X (Manually)

Power SupplyUSBPort ( 5V DC )

USB 2.0 & USB 1.1 Compatible

Operation System Windows XPVistaWin 7 32 bit and 64 bit.

Language: EnglishChinese and other language by selection

System Requirement: Pentium Computer with 700M Hz & above

20M HD Space CD ROM Driver64MB RAMDirect X VGA Card

CD disk Driver and Micro-Measurement Tool

Product dimension 112 mm ( L ) X 33 mm ( R )

Product net weight: 380g

Available color: Matting blackUV black; and other colors.

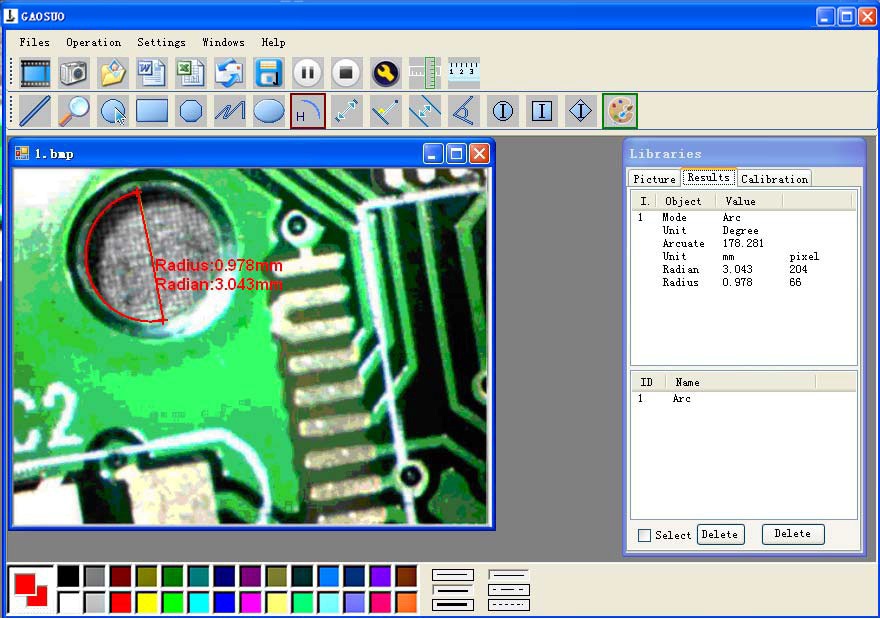

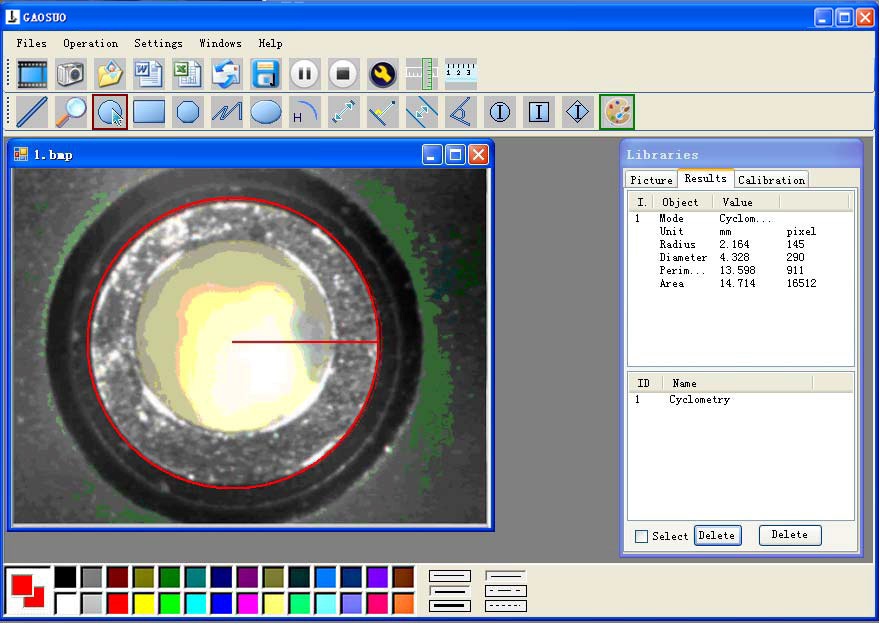

Measurement function in software
