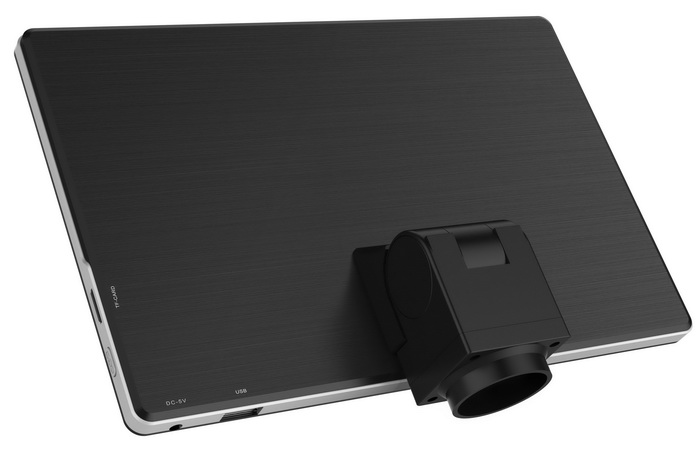

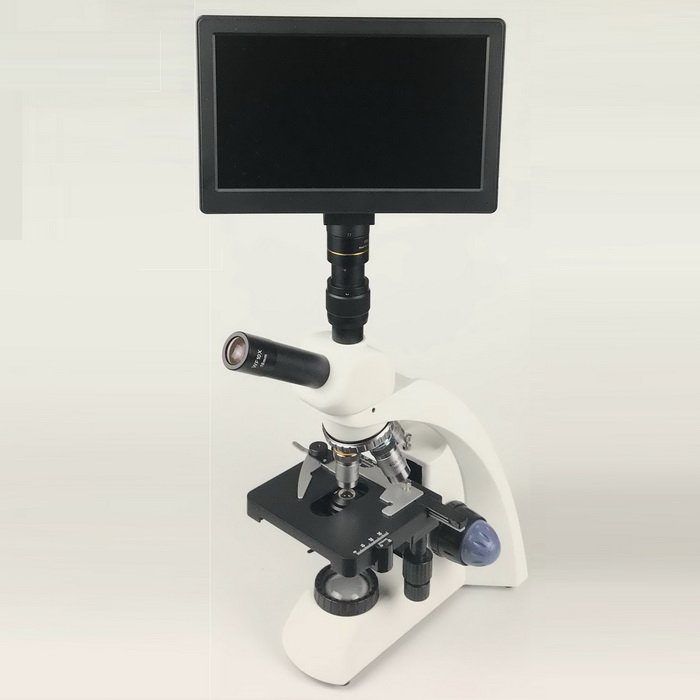

Scopepad-LX90 9.0 inch microscope tablet

Scopepad-LX90 9.0 inch microscope tablet Scopepad-LX90 9.0 inch microscope tablet Scopepad-LX90 9.0 inch microscope tablet Scopepad-LX90 9.0 inch microscope tablet

Product name:Scopepad-LX90 9.0 inch microscope tablet

Item:Scopepad-LX90

Details:

Scopepad series

Microscope smart tablet



Scopepad series is All in one (USB+SD card+WIFI mouse+HD Screen Display) C-mount tablet with high sensitivity CMOS sensor, which have following features:

-CNC precision machining shell;

- Built-in image capture & video record to memory card;

- Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and easy control;

- Built-in toolbar including measurement, cross, browser functions;

- Built-in image & video browsing, display & play;

- Ultra-Fine color engine with perfect color reproduction capability(USB);

- Support WIFI Mouse


Specification:

Model Name

Scopepad-LX97





Category

9.7 inch all in one monitor

Touch screen display with Android system

2048H*1536(V) resolution





Sensor size

1/2.5 inch





Effective pixel on camera system

5.0Mega pixel





Output interface

USB2.0, HDMI, TF Card, WIFI





Pixel Size

2.8μm×2.8μm





Power

DC-12V





UI Desktop

WIFI-mouse operation, fully humanized settings

Indication function

point coordinates, cross line coordinates, text notes





Measurement

Measure line length, curve length, parallel line distance,

point line distance





Geometric measurement

radius of the circle line, two round, three point circle, concentric circle





Geometric area

Geometric area polygon and square





Snapshot

Support 5 million static camera snapshot





Video

Video support 1080P video





system

S-eye software


←[Previous:Scopepad-LX97] [Next:]→
