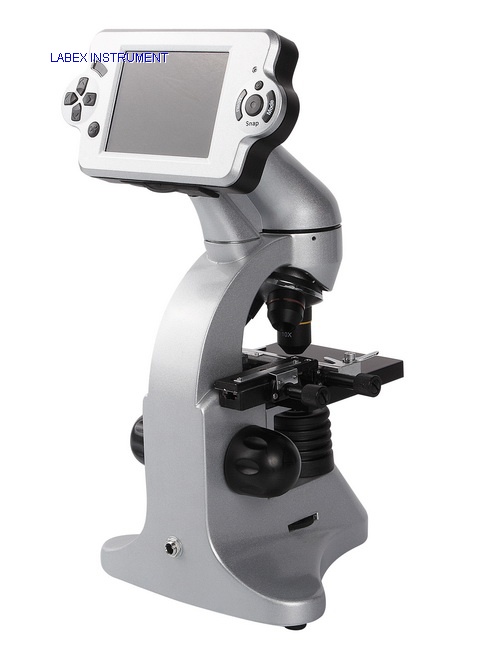

EVM-50LCD Video Microscope

EVM-50LCD Video Microscope

LED Display Monitor:

Camera: 2.0MP CMOS Chip, Resolution 1600x1200
Display Monitor: 3.6” TFT in focus display
Resolution: 960x240
Memory: 32MB
USB Line: USB2.0 MINI
Exterior memory: SD Card Slot
Digital Focal variation: 8X
Power: DC-5V, 1A

Microscope:

Total Magnification: 40x to 400x
Eyepiece: WF10X LED Display Monitor
Objective: 4X, 10X, 40X
Eyepiece Tube: Monocular 45 inclined Tube Rotation 360
Lighting System: Top and Bottom Light, LED illumination
Working Distance: 27mm
Coarse movement distance: 13mm
Work area: 90mm x 90mm with a mobile foot
Condenser: 0.65 Condenser
